MINI-FILL QUARTZ-TUNGSTEN LIGHTING
The Worlds Favorite
Camera-Top Lighthead Frezzis
award winning lighthead, the Mini Fill was originally designed by Frezzolini for the first
Mount Everest climb. It has continuously been updated and improved for the needs of the
broadcasting community. The Mini-Fills reliability, performance, and portability has
established its international reputation and inspired an entire line of lighting products
available today. Previously known only to the broadcasting community, this exceptional
lighthead has become the light of choice for the professional videographer.
Frezzi Mini-Fills are available in both standard
(on/off) and dimmer control models. The Dimmer Mini-Fill
provides the ultimate in flexibility for camera top quartz-tungsten lighting. An
advanced pulse width modulation circuit allows instant adjustment of the light intensity
while minimizing color change and conserving power. Adjusting the light output is as
simple as turning the dial on the back of the unit. Latest enhancements include fuseless
reverse polarity protection, improved noise filtering, and a new robust potentiometer that
will provide years of reliable service. |
Standard (on/off) Mini-FIll |
Dimmer Mini Fill with self
contained NP1 holder with optional FNP1S battery |
Dimmer Mini Fill with optional dichroic
filter (MFDF)
and barn doors w/ flip-up diffuser (MFBD) |
STANDARD MINI-FILLS |
DIMMER MINI-FILLS |
Item# |
Model# |
Description |
Item# |
Model# |
91101 |
MF-NP1HC |
Self contained NP1 holder and handle clamp
(includes 50W lamp) |
91201 |
MFIC-NP1HC |
91102 |
MF-PT |
Power-tap connector, 2 cable (includes
50W lamp) |
91202 |
MFIC-PT |
91106 |
MF-PTS |
Power-tap connector, 1
cable
(Standard 20W / Dimmer 30W -NEW ! )
For all Sony SX, Digital Betacam, and DVcam camcorders. |
91206 |
MFIC-PTS |
91103 |
MF-4X |
XLR-4(M) connector, 4 cable (includes
75W lamp) |
91203 |
MFIC-4X |
91104 |
MF-NP1S |
NP1 connector, 2 cable (includes 50W
lamp) |
91204 |
MFIC-NP1S |
91105 |
MF-NP1 |
NP1 connector, 4 cable (includes 50W
lamp) |
91205 |
MFIC-NP1 |
91107 |
MF-12S |
BP-90 plug connector for Pag-Lok, 2
cable (includes 50W lamp) |
91207 |
MFIC-12S |
91108 |
MF-5X |
XLR-5(M) connector, 4 cable (includes
75W lamp) |
91208 |
MFIC-5X |
91109 |
MF-12C |
BP-90 socket connector, 4 cable
(includes 50W lamp) |
91209 |
MFIC-12C |
91110 |
MF-12P |
Cigarette plug connector, 4 cable
(includes 100W lamp) |
91210 |
MFIC-12P |
91111 |
MF-30 |
30V, 2-pin amphenol(M), 4 cable
(includes 80W lamp) |
91211 |
MFIC-30 |
PT / PTS |
4X |
NP1 / NP1S |
12S |
5X |
12C |
12P |
30 |
Item# |
Model |
Watts |
Volts |
Kelvin |
Life(hrs) |
fc @ 5' |
Beam Sp. |
97001 |
BAB |
20 |
12-14 |
2925K |
2000 |
35 |
40° flood |
97002 |
FMW |
35 |
12-14 |
3000K |
4000 |
60 |
40° flood |
97003 |
EXN |
50 |
12-14 |
3050K |
3000 |
80 |
40° flood |
97004 |
EYC |
75 |
12-14 |
3050K |
3500 |
100 |
40° flood |
97005 |
EXV |
100 |
12 only |
3350K |
50 |
120 |
40° flood |
97006 |
EKP |
80 |
30 |
3350K |
25 |
150 |
40° flood |
Foot candle readings taken on lightheads
with diffused front glass which is standard on all Frezzi Mini-Fills. |

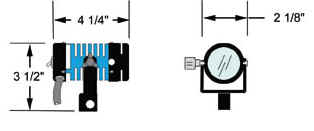

SPECIFICATIONS:
Weights: 12 oz. (17 oz. for NP1HC models)
Mount: 1/2" stud (clamp mount included with NP1HC models)
