MINI-SUN GUN HMI LIGHTING
In 1996 Frezzi revolutionized
the lighting industry with the worlds first camera mountable HMI light. The
tremendous popularity of the 24 watt Mini-Sun Gun inspired the expansion of Frezzis
growing line of HMIs. The Frezzi family of Mini-HMIs
includes 18W and 24W models. Now available in a sleek new ultra-lightweight rugged
one piece design, these expertly crafted HMIs operate on 12 to 14.4 volts, are 400% more
power efficient than quartz-tungsten lighting, and therefore provide the advantage of long
runtimes with high output at 5600K. |
![](images/conventions/mini-s1.jpg) |

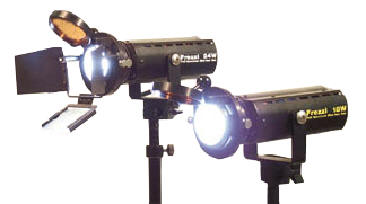

18 Watt Mini-Sun Gun with optional MADF |
24 Watt Mini-Sun Gun with self contained NP-1 holder
and optional MADF |
18 WATT MINI-SUN GUNS |
24 WATT MINI-SUN
GUNS |
Item# |
Model# |
Description |
Item# |
Model# |
92301 |
MFA18-NP1HC |
Self contained NP1 holder and
handle clamp |
92401 |
MFA24-NP1HC |
92302 |
MA18-PT |
Power-tap connector, 2
cable |
92402 |
MA24-PT |
92310 |
MA18-PTS |
Power-tap connector, 1
cable (for Sony SX and DVcam) |
N/A |
N/A |
92303 |
MA18-4X |
XLR-4(M) connector, 4
cable |
92403 |
MA24-4X |
92304 |
MA18-NP1S |
NP1 connector, 2 cable |
92404 |
MA24-NP1S |
92305 |
MA18-NP1 |
NP1 connector, 4 cable |
92405 |
MA24-NP1 |
92306 |
MA18-12S |
BP-90 plug connector for
Pag-Lok, 2 cable |
92406 |
MA24-12S |
92307 |
MA18-5X |
XLR-5(M) connector, 4
cable |
92407 |
MA24-5X |
92308 |
MA18-12C |
BP-90 socket connector, 4
cable |
92408 |
MA24-12C |
92309 |
MA18-12P |
Cigarette plug connector,
4 cable |
92409 |
MA24-12P |
PT / PTS |
4X |
NP1 / NP1S |
12S |
5X |
12C |
12P |
Item# |
Model# |
Watts |
Kelvin |
Life(hrs) |
Beam Sp. |
97102 |
FAB-24 |
24 |
5600K |
500 |
21° |
97103 |
FAB-18 |
18 |
5600K |
500 |
21° |
RUN-TIME AND OUTPUT COMPARISON ON A 72 WATT-HOUR BATTERY
|
Fixture |
Power Draw |
Output |
Run Time |
FC at 5' |
18W HMI |
24W |
75W* |
180 min. |
80 |
24W HMI |
28W |
100W* |
154 min |
100 |
* Output shown is daylight corrected
tungsten equivalent. (ie. A 75W tungsten light with dichroic filter has equivalent output
to 18W HMI)
Footcandle readings taken on lightheads with diffused front glass which is standard on all
Frezzi Mini-Lights. |

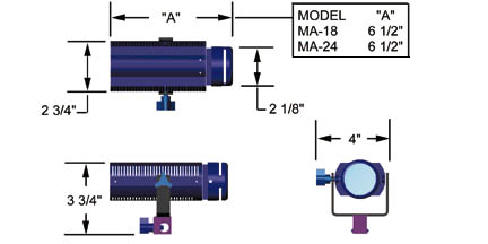

Weights: MA18: 1 lb.
MA24: 1 lb.
MFA18-NP1HC: 1.38 lbs
MFA24-NP1HC: 1.38 lbs
Mount:
1/2" stud
(clamp mount included w/ NP1HC models) |
![](images/conventions/mini-s2.jpg) |
