NP-1 BATTERIES, BATTERY PACKS, AND BATTERY BELTS
FNP1-MH
|
FNP-1S
|
Frezzi NP-1
batteries are the perfect replacement for all existing NP-1 style batteries. Whether you
are powering a camera, light, monitor, or recorder, Frezzi has an NP-1 for you.
For powering modern video cameras with cut-off voltages in the 10.5 to 11.5
volt range, the higher voltage of the

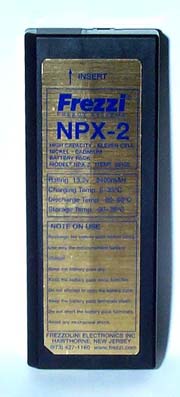

new higher capacity NPX-2
will provide a significant improvement in run time and battery life over commonly used 12V
batteries.
The reliable FNP-1S batteries are a direct
replacement for the Sony NP-1B and are a good choice for powering on-board 12V lights, or
for cameras with lower cut-off voltages under 10.5 volts.
The FNP-1MH battery provides twice the runtime of
standard NiCd NPs, and is now equipped with proprietary charge/discharge protection for
improved performance and extended life. The higher voltage design of the FNP-1MH makes it
a great choice for powering video cameras. |
|
|
NPX-2 |
| Item# |
Model# |
Voltage |
Capacity |
Dimensions
(in.) |
Weight |
Chemistry |
| 93101 |
FNP-1MH |
13.2V |
50 WH |
7.25 x 2.75 x 0.94 |
1.5 lbs. |
NiMH |
| 93103 |
FNP-1S |
12.0V |
28 WH |
7.25 x 2.75 x 0.94 |
1.5 lbs. |
NiCd |
| 93105 |
NPX-2 NEW! |
13.2 |
32 WH |
7.25 x 2.75 x 0.94 |
1.5 lbs. |
NiCd |
| BATTERY PACKS
Frezzi provides a full line of NiCd battery
packs for powering lights, cameras, decks, and for 30 volt applications. The VB-12P,
VB-4XP, and VB14-4XP are great economical alternatives to battery belts. |
| Item# |
Model# |
Description |
Voltage |
Capacity |
Dimensions
(in.) |
Weight |
| 93501 |
FBP-90 |
BP-90 replacement |
12.0V |
60 WH |
6.5 x 4.75 x 1.5 |
3.5 lbs. |
| 93502 |
VB-12P |
Cig. lighter connector, belt loop and shoulder
strap, |
12.0V |
60 WH |
8.0 x 5.5 x 2.0 |
4.0 lbs. |
| 93503 |
VB-4XP |
XLR-4 connector, belt loop and shoulder strap, |
12.0V |
60 WH |
8.0 x 5.5 x 2.0 |
4.0 lbs. |
| 93504 |
EC-30 |
Built in 110V 14 hr. charger, (220V charger
also available) |
30.0V |
150 WH |
9.5 x 5.0 x 2.75 |
10 lbs. |
| 93505 |
VB14-4XP |
XLR-4 connector, belt loop and shoulder strap |
14.4V |
72 WH |
8.5 x 5.5 x 2.0 |
4.5 lbs. |
 F-13-EXFA |
All Frezzi battery belts are
constructed from fine rugged leather for durability and comfort. The highest quality NiCd
cells are used for reliability and long life. The following features are standard on all
Frezzi belts: • Built in charger with ready
indicator and auto voltage select worldwide
• Highest quality all leather construction
• Rebuildable and repairable
• Highest quality NiCd cells for reliability, long
life, and high current loads |
| Item# |
Model# |
Description |
Voltage |
Capacity |
Weight |
| 93601 |
F-30-EC |
Single output 30V
2 pin amphenol , built-in 14 hour charger |
30.0V |
150 WH |
10.0 lbs. |
| 93604 |
F-30/14-EXFA |
Switchable output 14.4V XLR-4 or
30V 2 pin amphenol, built-in 14 hour charger |
30.0/14.4V |
150 WH |
10.0 lbs. |
| 93605 |
F-14-EXFA |
Dual output XLR-4, built-in 6 hour
charger |
14.4V |
100 WH |
8.5 lbs. |
| 93606 |
F-13-EXFA |
Dual output XLR-4, built-in 6 hour
charger |
13.2V |
93 WH |
8.25 lbs. |
| 93607 |
F-12-EXFA |
Dual output XLR-4, built-in 6 hour
charger |
12.0V |
84 WH |
8.0 lbs. |
   |
