FPT-25 Elite Broadcast Camera Robotics
Engineered for Quality and Affordability

The FPT-25 Servo Pan Tilt head designed for broadcast quality and affordability.
Compatible with popular Sony, Hitachi and Panasonic Cameras and Teleconference Lenses.  It can support a camera/lens payload up to 25 pound (11.34KG) and can be fitted to a number of standard tripod, post or desk mounts.   It may be inverted for ceiling suspension as well as wall mounted.

Its compact design makes it ideal for use in tight spaces and high performance applications.  It is designed for easy “plug and play” set up and operation.

The PT-25 can be used with most popular cameras and Canon or Fujinon teleconferencing lenses eliminating the need for bolt-on after market lens drives.

Specifications:
DIMENSIONS (HWD)
6 7/16” x 5 3/8” x 5 1/4” (16.4 cm x 13.7 cm x 13.4 cm)

WEIGHT
10 lbs. (4.54 kg)

POWER
2.5A @ 24 VDC

ENCLOSURE
Metal with black enamel and black anodized matte finish

PRESETS
Up to 32 presets for pan, tilt, zoom, focus and iris axes

SERVO MOTOR LENS CONTROL
Supports positional and speed modes

ANGULAR TRAVEL
Pan: +/- 177 degrees (354 degrees total)
Tilt: +/- 90 degrees (180 degrees total)

ENVIRONMENTAL
32 F to 120 F (0C to 48.8 C) ambient operating temperature range

SPEED
• Pan: 35 deg/sec
• Tilt: 35 deg/sec

REPEATABILITY
+/- 3 arc minutes

CONNECTORS
• DB-9 for RS-232 camera control
• HD-15 for lens control
Barrel Jack for power and ground
RJ-45 for RS-485/422

OPTIONAL ACCESSORIES
Pedestal Mount Adapter 8in high
Wall Mount Bracket
Mitchell Mount Adapter for Tripods


POWER SUPPLY
24 volt DC power supply


FPT-25 Broadcast Pan Tilt Head

•
Studio Silent Operation

•
Small Profile

•
Broadcast Quality ON AIR Movements

•
Coordinated On Arrival Preset Movements or
     Pan, Tilt, Zoom and Focus

•
Designed for
       Broadcast News
       Reality TV

Court Room
       House of Worship
       Legislative
       Distance Learning

•
25 lbs (11.34 kg) Payload

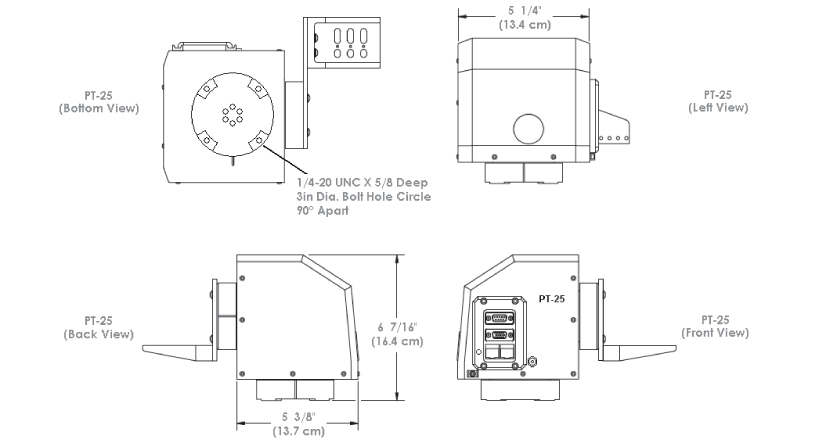

Dimensions



For more information contact Frezzi at:
robotics@frezzi.com  or call (800) 345-1030 x23 between 8am and 5pm est

MULTICONTROLLER Elite Control Console
The  Multi-controller Elite Control Console provides feature-rich remote camera control for up to 36 cameras.

D
esigned for easy installation and to ease of use. Plug and Play out of the box with intuitive set up and control. There is no system programming or complex network configuration required.


 Specifications:
Dimensions (HWD)             4.1 x 11.8 x 9.3 inches (10.4 x 30 x 23.cm)
Weight                               11 lbs (5 kg)


Enclosure finish                 Metal with black enamel and black anodized matte


Buttons and Switches         6 illuminated camera select switches, 8 screen select
                                          buttons, 2 camera bank buttons 1 joystick enter button, 1 page
                                          select paddle switch

Power                                 15 watts maximum

Voltage and Current           100 – 240 VAC,  50 – 60 Hz,  200 mA maximum

Operating Temperature      32
o F – 104o F (0 C – 40 C)
Storage Temperature         4
o F – 140o F (-10 C – 60 C)
Display                                Passive monochrome backlit LCD

                                            5.35” (136 mm) diagonal measurement 60 degree                                             total viewing angle, all directions 240 x 128 resolution

Rear Panel Connections      DB9 RS232 serial port for video switcher control
                                            t
wo RJ45 RS485 network sockets, 7-pin captive screw                                             for tally light contact closures

Agency Approvals              UL listed (file E127643), CE, FCC Class B

 Supported  Switchers         Extron


MULTICONTROLLER  Elite
Control Console

• Plug and play intuitive operation controller, Pan, Tilt, Zoom, Focus work “Out Of The Box” with a CANON or FUJINON teleconferencing type lens for quick error free installation

• Six “On-Air” tally contact closures

• RS-485 communication allows MULTICONTROLLER Elite to communicate with up to 36 cameras on a single daisy chained RJ-45 network connection up to 3,000 feet of network length

• Desk top mount with right or left hand standard joystick control of Pan/Tilt heads

• 32 presets per camera

• Preset names can be text edited on screen

• Convenient RJ-45 network connections

• 5.5 inch (14 cm) LCD display with backlight and contrast adjustments

• Pan & Tilt joystick directions, speed and acceleration can be set for operator preference

• Rotary encoded focus control knob allows you to adjust the lens focal points for sharpness and definition.  The knob incorporates a drag mechanism for more precise control of the lens focus

• Iris control knob can be adjusted for the proper gain to maintain a constant video level

• Software set Pan & Tilt end stops

• Supports paint functions for popular cameras

For more information contact Frezzi at:
robotics@frezzi.com  or call (800) 345-1030 x23 between 8am and 5pm est
