Frezzi Energy Systems introduces New ENG and EFP
Broadcast Products for NAB 2005

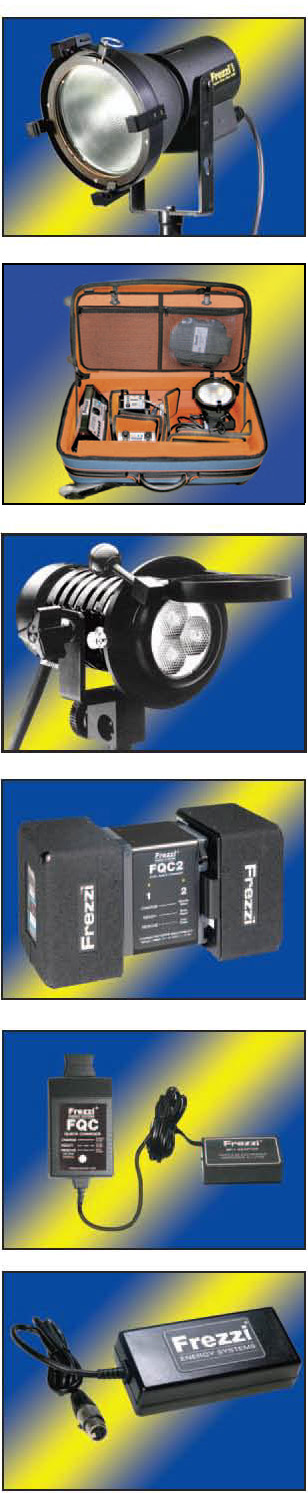

COMPACT 50 WATT
POWER SUPPLY

Frezzi Energy Systems New compact 50 watt power supply is a high quality portable 50 watt supply for ENG and EFP applications.















ADVANCED COMPACT
QUICK CHARGER

New Quick charger for 12-14.4 Volt NiCd / NiMH batteries. The most portable quick charger for professional broadcast.










































































NEW FREZZI LED ON CAMERA LIGHT  Frezzi Energy Systems is proud to introduce the Frezzi LED Mini-Fill. Our latest LED Mini-Fill draws only 10 watts of power with a color temp of 5500 degrees. All Frezzi LED lights include LED bulbs.  Temporarily Unavailable Contact (973) 427-1160.

400 WATT HMI SUPER-SUN GUN
Frezzi New 400W HMI Super Sun Gun is engineered for news gatherings and produces a wide flat optical field of light casting over 600 foot candles at 10ft providing unmatched output for its size and weight. The Frezzi 400W HMI outputs more light than most 800W HMI’s on the market today and can still run on DC. It is now available in both AC and DC Kits as listed below.

400 WATT HMI AC AND DC KITS
9
2706 SSGK1-400AC • 400W AC Kit includes: (1) SSG-400 Head, (1)FAB 400 HMI lamp, (1) BAC-400 Dimmable AC ballast , (1) SSG-BD 4-leaf barn door, (1) SSGSB Soft Box with 3 diffusion and 1 CTO filter (1) TC 3 Transport case.
92707 SSGK1-400DC • 400W DC Kit includes: (1) SSG-400 Head, (1)FAB 400 HMI lamp, (1) BDC-400 Dimmable DC ballast , (1) F30P 30V 15AH Battery (1) F30QC 30V Quick Charger (1) SSG-BD 4-leaf barn door, (1) SSG-SB Soft Box with 3 diffusion and 1 CTO filter (1)TC 5 Transport case.
92708 SSGK2-400AC • Dual 400W AC Kit includes: (2) SSG-400 Heads , (2)FAB 400 HMI lamps, (2) BAC-400 Dimmable AC ballasts , (2) SSG-BD 4-leaf barn doors, (2) SSG-SB Soft Boxes with 3 diffusion and 1 CTO filters (1)TC 5 Transport case.
92710 SSGK1-400AC/DC • 400W AC/DC Kit includes: (1) SSG-400 Head, (1)FAB 400 HMI lamp, (1) BAC-400 Dimmable AC ballast , (1) BDC-400 DC Dimmable DC ballast (1) F30P 30V 15AH Battery (1) F30QC 30V Quick Charger (1) SSG-BD 4-leaf barn door, (1) SSG-SB Soft Box with 3 diffusion and 1 CTO filter (1)TC 5 Transport case.

94107 FQC2-A • The New Frezzi Dual Channel Charger delivers simultaneous quick charging for professional on camera batteries (NiCd and NiMH) from 1 to 10Ah. Lightweight compact design makes for easy transportation, dimensional size: 4” x 3” x 4.75” Weight 1.5 lbs. Intelligent charge circuitry provides automatic full charging and manages maintenance of battery for optimal battery performance.

Auto-Rescue mode recovers over-discharged batteries accordingly by engaging special charge mode raising battery voltage level required for quick charging. Worldwide voltage input 90-240VAC 50-60 Hz.

NEW SINGLE CHANNEL QUICK CHARGER • Quick charger for 12-14.4 Volt NiCd and NiMH batteries 1-7Ah (FQC-14, FQC-14V 1-10Ah) at 1 amp charge rate. LED charging status. Ready indicator provides ready to use status. Auto line select 90-240VAC 50-60 Hz. dimensional size: 5.6” x 2.75” x 1.5” Weight 1/2 lbs.

DUAL CHANNEL CHARGER

94100     FQC-NP1 for NP1 batteries
94101     FQC-14 for 14.4V 1 to 10Ah bricks
94105     FQC-14V for 14.4V 1 to 10Ah V-Lock
94102     FQC-4X for VB-14-4XP batteries.
94103     FQC-BP90
94104     FQC-12P for cigarette conn.


NEW COMPACT BROADCAST POWER SUPPLY
 95105     FPS-50 • Compact and lightweight the Frezzi FPS-50, 50W regulated power supply is a easy to transport high quality power supply. Output voltage 12.5V at 6 Amps Maximum. Output connector XLR-4 (4+, 1-). Ideal for productions requiring a highly compact dependable power supply for travel or when space is limited. Dimensional size: 5.75” x 1.25” x 2.25”, weight 1/2 lbs. Worldwide voltage input 90–240VAC 50-60 Hz. Can also be used as a battery eliminator for running Frezzi lights.

91702 MFIC-LED-PT power tap connector, 2’ cable
91703 MFIC-LED-PTS power tap connector, 1’ cable
91704 MFIC-LED-4X XLR-4(M) connector, 4’cable
91705 MFIC-LED-NP1S NP1 connector, 2’ cable
91706 MFIC-LED-NP NP1 connector, 4’ cable
91707 MFIC-LED-12S BP-90 plug connector for Pag-Lok, 2’ cable
91708 MFIC-LED-5X XLR-5(M) connector, 4’ cable
91709 MFIC-LED-12C BP-90 socket connector, 4’ cable
91710 MFIC-LED-12P Cigarette plug connector, 4’ cable

SSG-400 HMI SUPER-SUN GUN
Frezzi Energy Systems New SSG-400 Super Sun Gun HMI features the highest daylight illumination output on the market and is available for both AC and DC operation



DUAL CHANNEL QUICK CHARGER
The New Frezzi Dual Channel Quick Charger encompasses simultaneous quick charging with advanced recovery features in the most compact portable design available





Broadcast Quality LED
Camera Light


Temporarily Unavailable
Please contact Frezzi at
(973) 427-1160 for
availability date.
